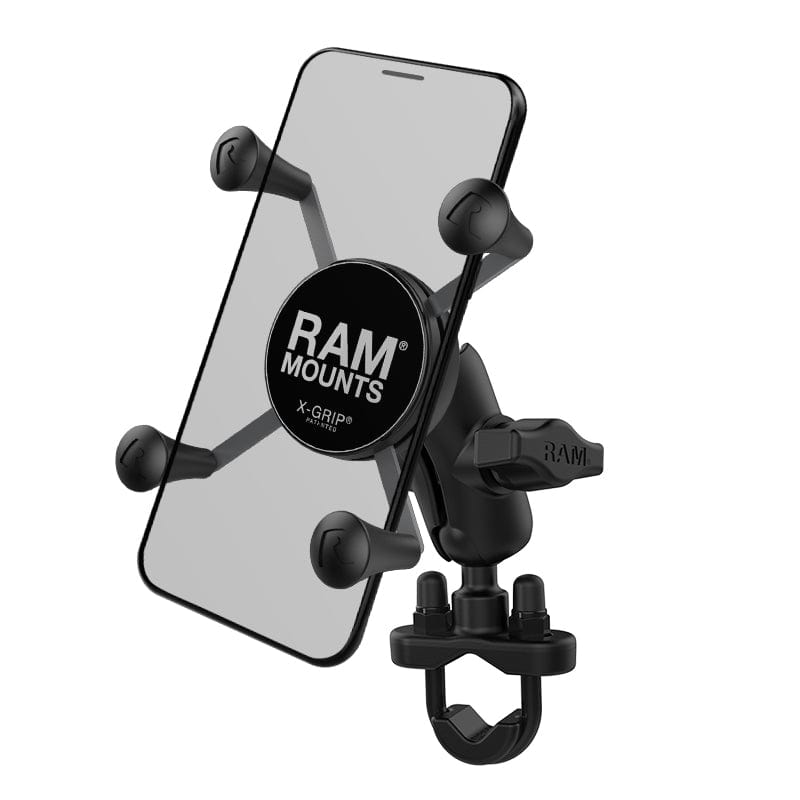

RAM® X-Grip® Phone Mount with Handlebar U-Bolt Base (RAM-B-149Z-A-UN7U)

Rs. 4,199.00 Rs. 4,199.00 Sale
- +

FEATURES

  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length B size RAM double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

OVERVIEW

Ideal for handlebars, the RAM-B-149Z-UN7U consists of a zinc-coated U-bolt base, medium length double socket arm, and the popular spring-loaded RAM® X-Grip® phone holder. In addition, hardware is included to accommodate rails from .5" to 1.25" in diameter. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite, this version of the RAM® X-Grip® fits phones ranging from 1.87" to 3.25" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.

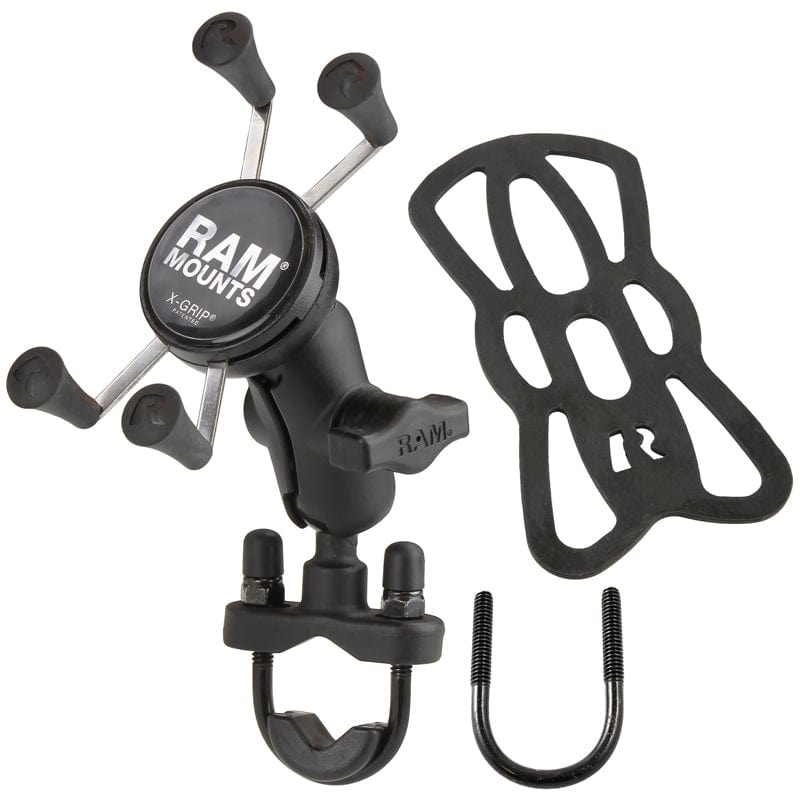

HARDWARE INCLUDED

(1) Optional Tether
(1) 1/4"-20 x 1.75" U-Bolt
(1) 1/4"-20 x 1.25" U-Bolt
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS

Width Range: 1.875" - 3.25"
Depth Range: .875" max

CLAMP RANGE

.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH

1.75"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

2 lbs

MATERIALS

Marine-grade aluminum
High strength composite
Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

0.68 lbs.

ADDITIONAL INFORMATION

xgrip un7 animation of cradle dimensions
